NCM 61.2V 62.5Ah Electric Vehicles Battery AIAR Certificate For Electric Motorcycle

Name: NCM 612V 625Ah Electric Vehicles Battery AIAR Certificate For Electric Motorcycle
Brand: SOUNDON
Price: 1 USD

Wholesale NCM 61.2V 62.5Ah Electric Vehicles Battery AIAR Certificate For Electric Motorcycle from china suppliers

Brand Name : SOUNDON

Model Number : SD-EB-61.2V62.5

Certification : CE,CB,UN38.3,MSDS

Place of Origin : China

MOQ : 1

Price : Negotiable

Supply Ability : 500 unite / day

Delivery Time : sample within 7-10days ,mass production for 20-25days

Packaging Details : carton box for outside package

Voltage : 61.2V

Capacity : 65AH

battery cell capacity : 3.6V12.5Ah

battery module : 3.6V65AH

Battery configuration : 5P17S

Protection Level : IP54

Battery material : NCM battery material

Battery pack dimension : L538*W241*H282mm

Application : electric motorcycle ,electric tricycle ,electric rickshaw,electric sighting vehcile

Contact Now

Electric Vehicle Batteries NCM 61.2V 62.5Ah with AIAR certificate, electric motorcycle ,trike ,richshaw

Specifications:

The whole battery pack was assembled in one battery case which including battery module,one set of PCB system,charge and discharge wire which with Anderson connectors, collection wire harness, fuse etc.

Item	Parameter
Voltage Range	51V---71.4V
Battery system whole energy(KWh)	Rated:3.825kWh
Battery system whole capacity	Rated:62.5Ah
SingelCell model	SEPNi7688190-12.5Ah
Cell configuration	5P17S
Battery system working temperature	Discharge:-20~45℃,charge:0~45℃
Battery surrounding environment relative humidity	10%~85%
Battery storage temperature	-20～45℃
Battery standard charging current(23±2℃)	31.25A
Battery Max charging current(23±2℃)	50A
Battery standard discharging current(23±2℃)	31.25A
Battery continuous discharging current(23±2℃)	187.5A
Battery discharge peak current(30s)(23±2℃)	225A
Waterproof grade of battery case	IP54
Battery system waterproof grade	IP54
Cooling system	Air cool

NCM Pouch battery Cell Models:

Soundon New Energy are mainly produce NCM battery ,Lifepo4 battery for electric vehicle ,energy storage battery .

Battery cell can configurate 3P,4P.5P battery moduel ,then compose to battery pack ,can customize to various battery pack models .

Model	Voltage (V)	Capacity (Ah)	Impedance(mΩ)	Dimention			Energy Density
Model	Voltage (V)	Capacity (Ah)	Impedance(mΩ)	Length (mm)	Width (mm)	Thickness (mm)	Mass Energy Density (Wh/kg)	Volume Energy Density (Wh/L)
SEPNi8688190P-15Ah	3.65	15	≤3.5	194±2	91±2	8.3±0.4	≥200	≥375
SEPNi8688190P-17Ah	3.65	17	≤3.5	194±2	91±2	8.4±0.4	≥220	≥425
SEPNi75161227P-30Ah	3.65	30	≤2.5	226±2	160±2	7.4±0.4	≥220	≥420
SEPNi11100302P-40Ah	3.65	42	≤2.5	301±2	99±2	10.9±0.4	≥220	≥435
SEPNi11164227P-45Ah	3.65	45	≤2.5	226±2	163±2	10.8±0.4	≥210	≥405
SEPNi11217127P-32Ah	3.65	32	≤2.5	125±2	215±2	11.1±0.4	≥220	≥385

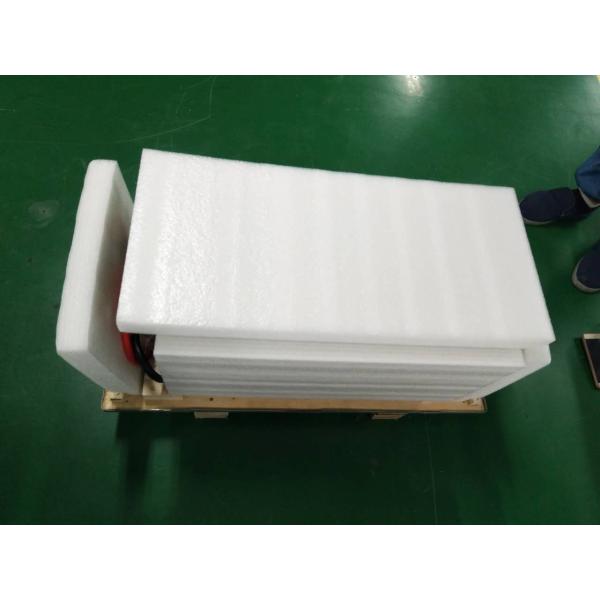

Packaging

Mass production line

NCM 61.2V 62.5Ah Electric Vehicles Battery AIAR Certificate For Electric Motorcycle
